Lab 2: IMU

Overview

In Lab 2, I integrated a 9DOF IMU with the SparkFun RedBoard Artemis Nano, computed orientation estimates from accelerometer and gyroscope data, analyzed accelerometer noise in the frequency domain, implemented a low-pass filter (LPF), and fused accelerometer + gyroscope estimates with a complementary filter. Finally, I powered the RC car from a battery and recorded driving “stunts” to establish a baseline for future autonomous behavior.

IMU Setup

Hardware connections

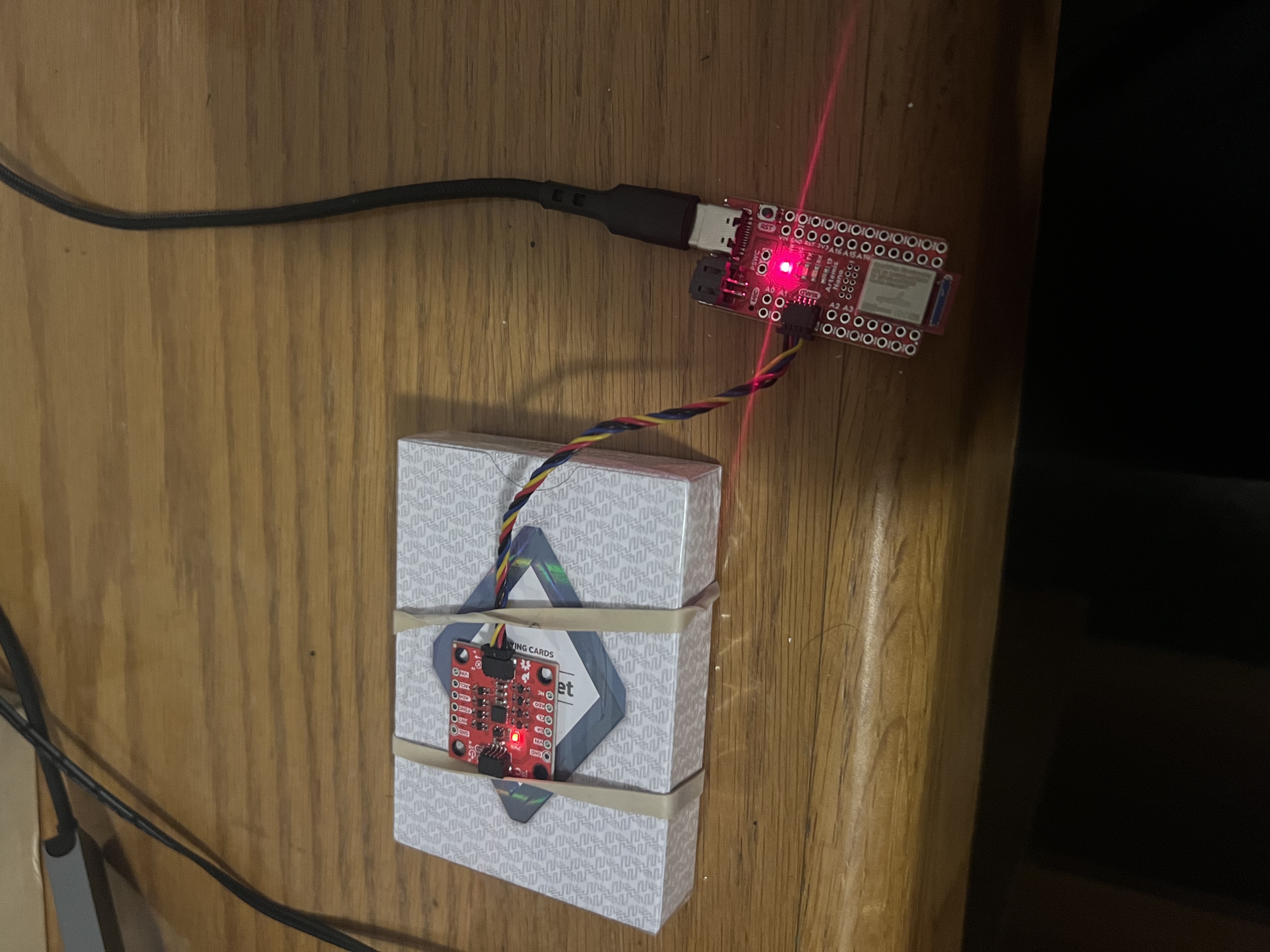

I connected the SparkFun ICM-20948 IMU breakout to the Artemis using the QWIIC connectors (I2C). The image below shows this setup. I also added a visual indicator by blinking the Artemis LED 3 times on boot; there is an image for this as well.

Example code works

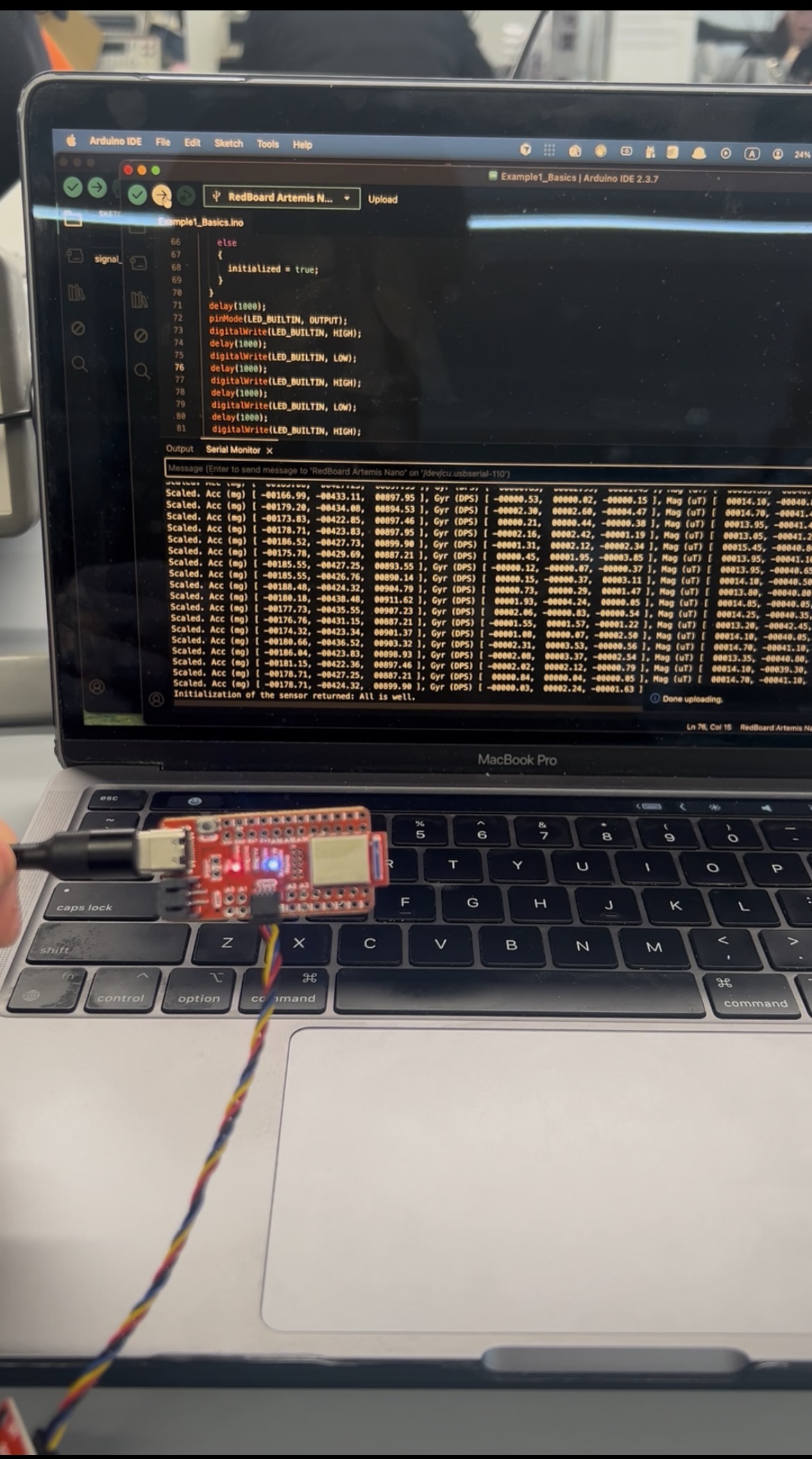

I verified basic IMU functionality using the SparkFun library example:

• Library: SparkFun 9DoF IMU Breakout - ICM 20948 - Arduino Library
• Example: Example1_Basics

I modified the code in the example slightly in order to get the serial prints and plotter to work nicely. However, this didn't impact the actual values, so there was minimal effect. I confirmed that acceleration (mg) and gyroscope (DPS) values updated as expected while rotating and translating the board.

AD0_VAL (what it is + what it should be)

AD0_VAL represents the least significant address-selection bit for the IMU’s I2C address (effectively selecting between the two possible I2C addresses depending on the AD0/ADR pin state). In practice:

• If the IMU ADR/AD0 line is left at its default, AD0_VAL should match that default.
• If the ADR jumper is bridged/closed, AD0_VAL must be changed accordingly.

In my setup, AD0_VAL = 1 because I am just using the default configuration.

Initial sensor behavior (what changes and why)

From the example output and the calculated roll, pitch, and yaw values for both the accelerometer and gyroscope (shown in later videos):

• Accelerometer: Changes with linear acceleration and also reflects gravity. When the board is still but tilted, the acceleration vector changes because gravity is distributed differently across axes. I also noticed that the accelerometer's data is very noisy. This is expected, since accelerometers are highly sensitive to small vibrations, mechanical disturbances, and electrical noise.
• Gyroscope: Changes with angular velocity. When I rotate about an axis, I see a spike primarily on the corresponding gyro axis; when stationary, gyro values return to near zero. For the above example, you can see my gyroscope values stay mostly near zero because my motion is relatively slow, resulting in a small angular velocity being measured.

Another important thing is that the parameters change based on the axis being rotated about. For example, when you rotate about the x-axis, you see that the pitch changes the most compared to the other two axes.

Accelerometer

Pitch and roll from acceleration

Using the equations from the lecture, I converted raw accelerometer readings into pitch and roll (degrees). I used atan2() for robust quadrant handling.

#include <math.h>

pitch_a = atan2(accX, accZ) * 180.0 / M_PI;
roll_a  = atan2(accY, accZ) * 180.0 / M_PI;

The video below showcases how I obtained 0, -90, and 90 degrees for the pitch and roll from the accelerometer.

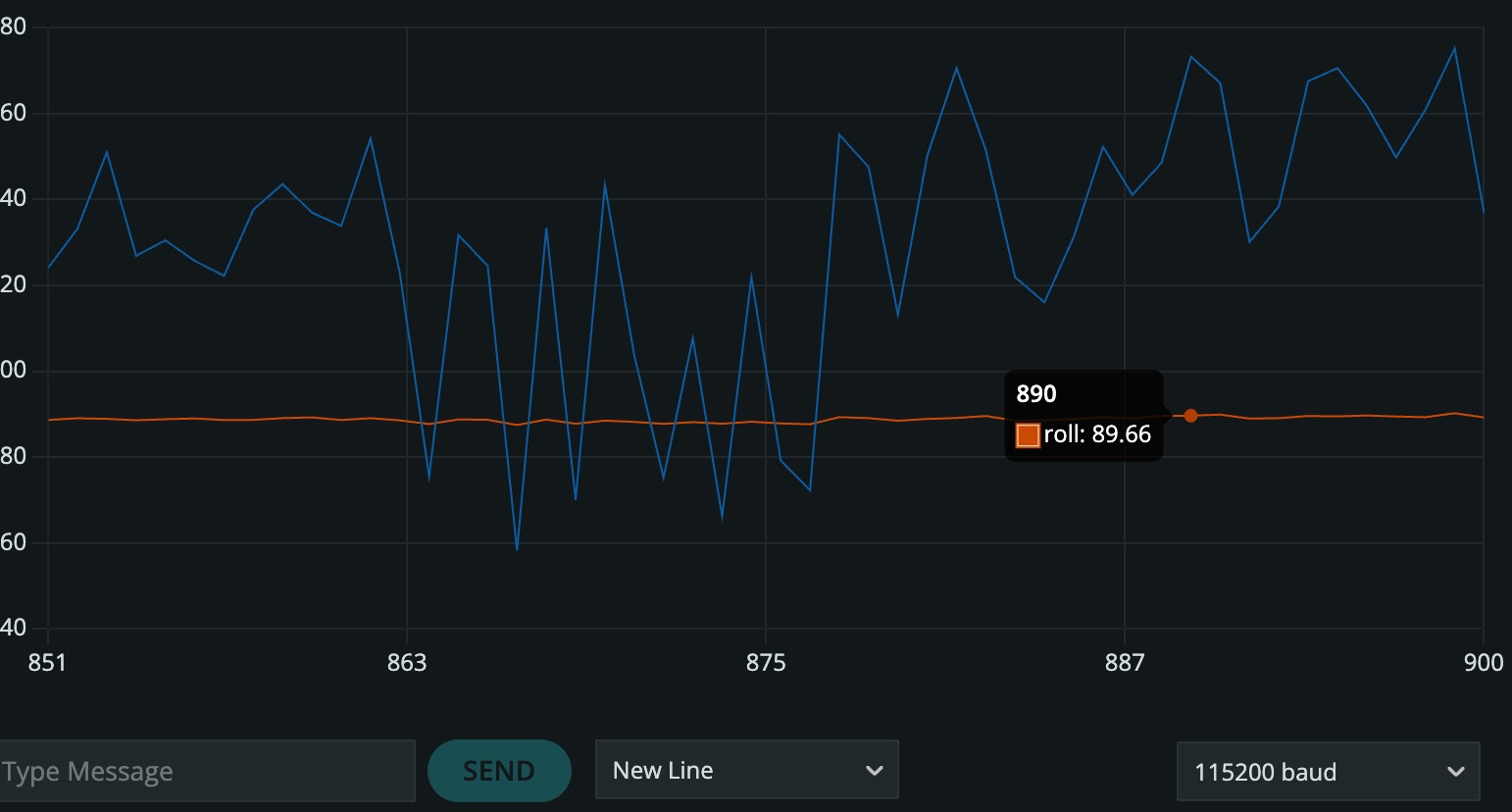

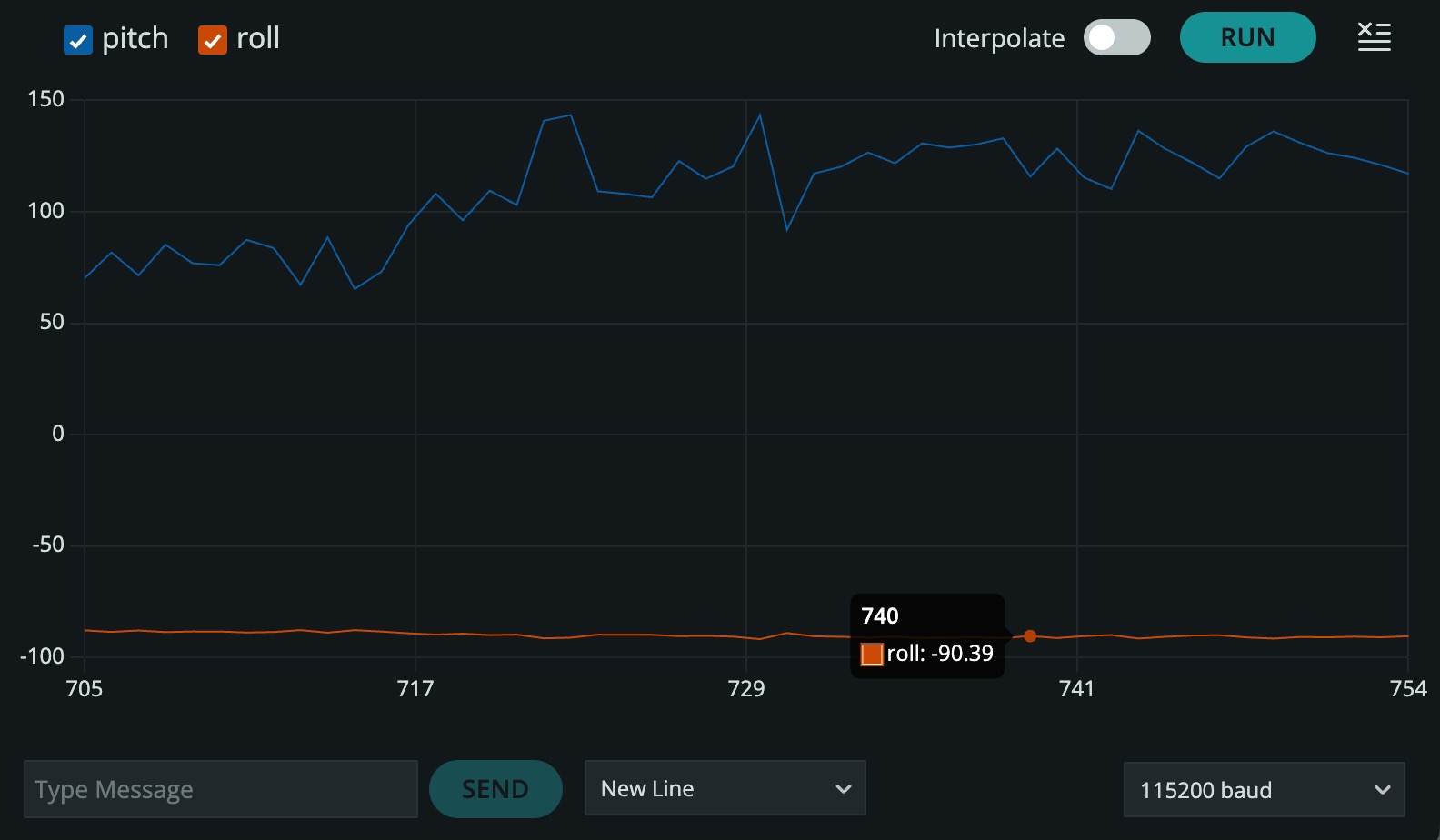

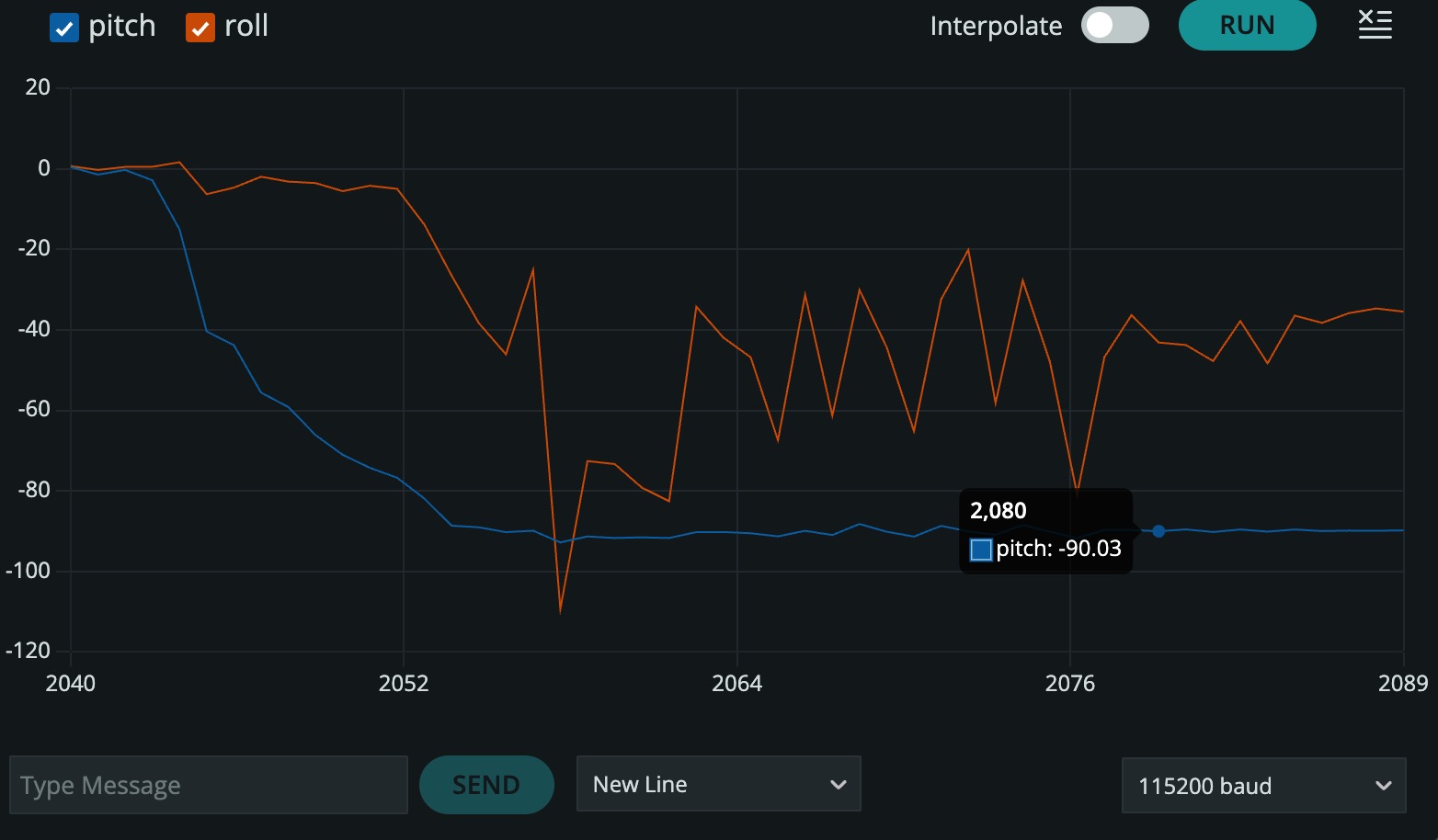

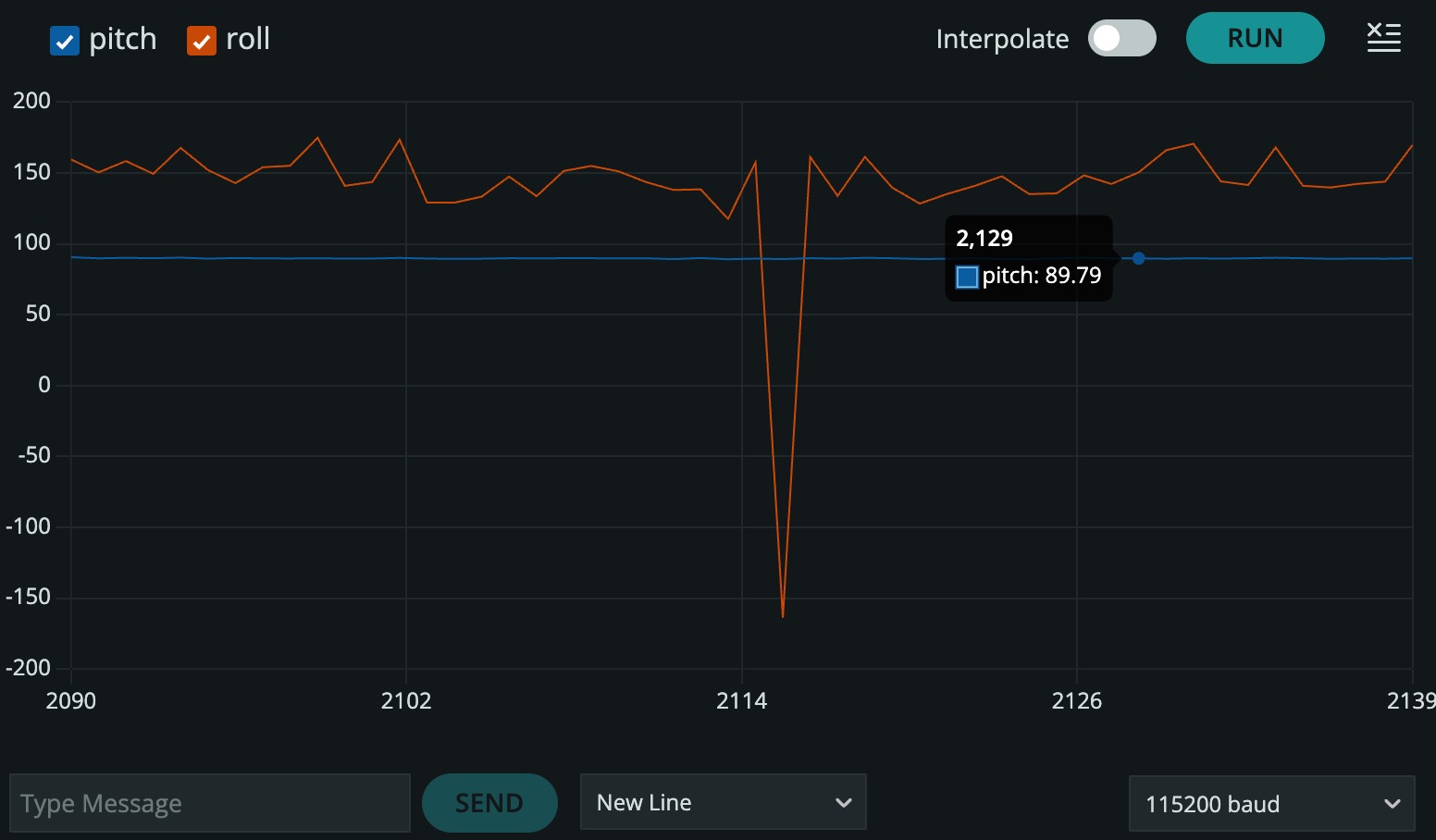

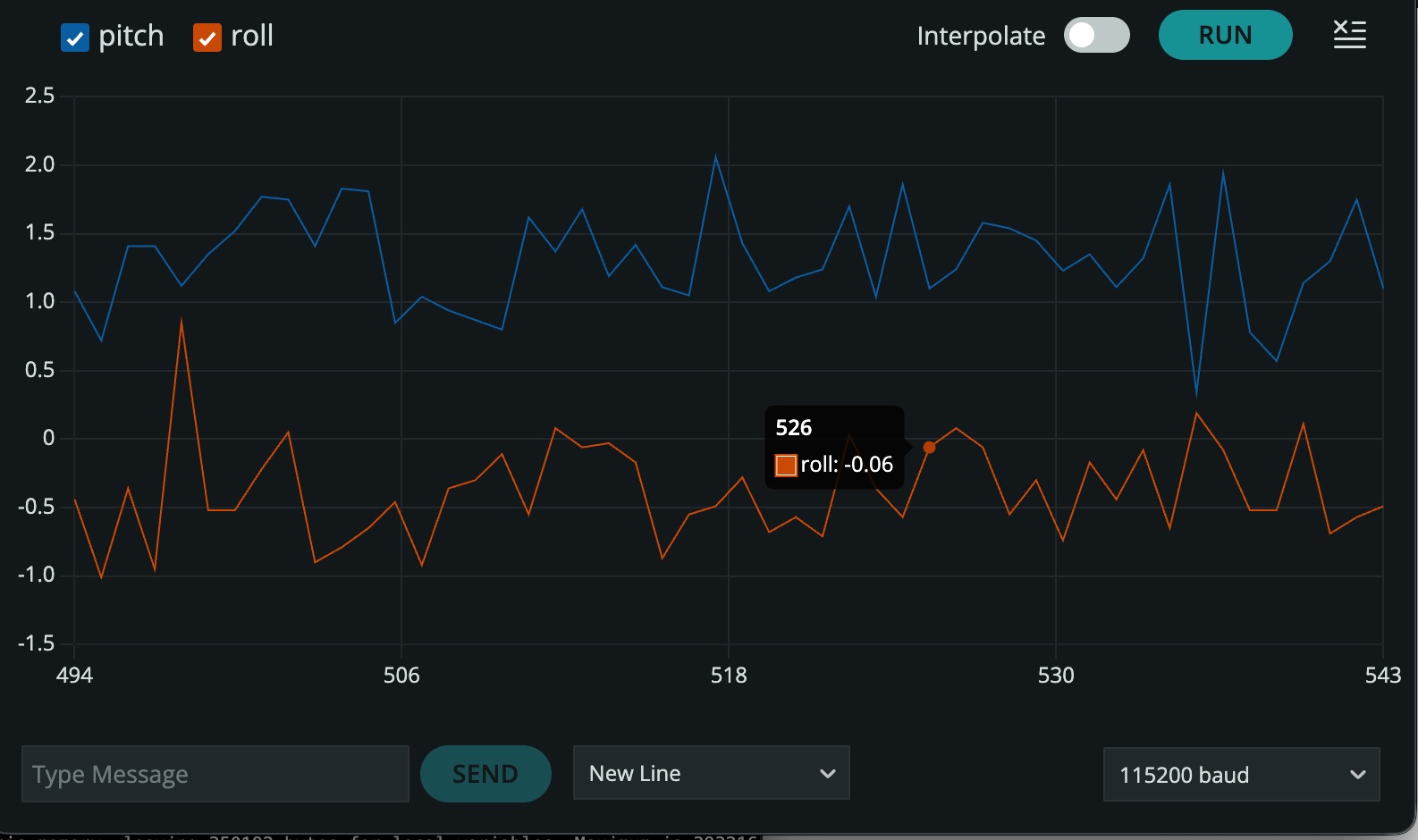

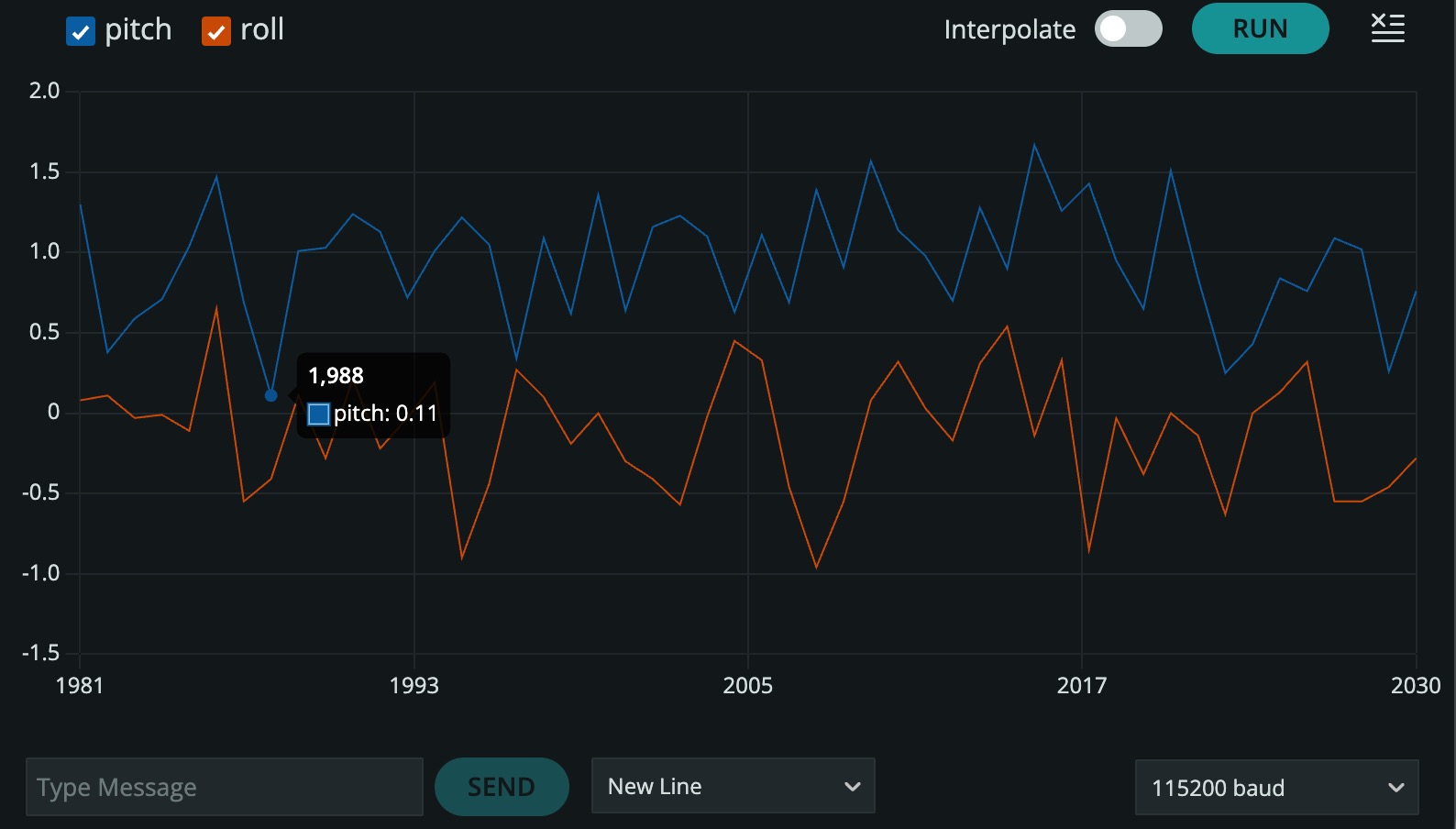

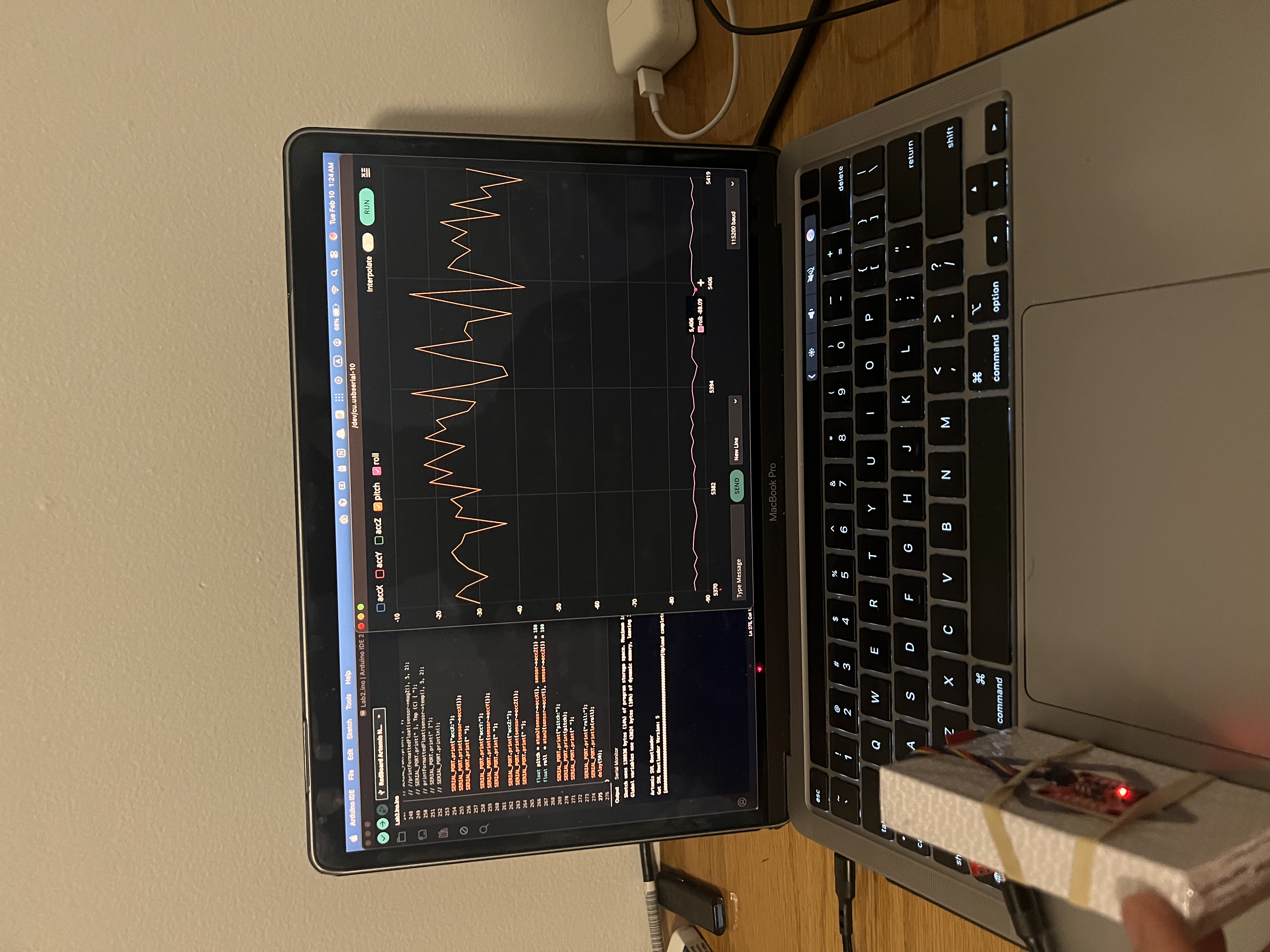

Specifically, the 5 images below are static images of me hitting those specific angles. As the images indicate, the accuracy of the accelerometer is pretty decent, as the values are close to their true values, but they are not super precise. I used a 2-point calibration to attempt to make it a bit better. Specifically for pitch, true 0 degrees is about 2 degrees, and true -90 degrees is about -88 degrees. This is easy to fix; you just need to add a 2-degree offset. The roll value is a bit more complicated because true 0 degrees is roughly -1.5, true -90 degrees is about -91, and true 90 degrees is about 92 degrees. Using the slope function, we get the following, where a is the slope and b is the offset:

a = (y2 - y1) / (x2 - x1) = 180 / 183 = 0.9836065574
b = y2 - a*x2 = 90 - 0.9836065574*92 = -0.4918032787

Accuracy of the accelerometer

  pitch = pitch - 2;
  roll = 0.9836066 * roll - 0.4918033;

The calibrated results end up looking pretty good for pitch and roll at the different critical values.

Data from Accelerometer

I made a new command in the Artemis code to collect the IMU sensor data with a certain number of samples (in this case, 2048 samples) and transmit them to the Python server. Once the data arrives as a string, I parse them into separate arrays by the type of data (i.e., pitch_a, roll_a, etc.). I then used them to plot graphs for analysis and results.

case GET_IMU_READINGS: {

              float Micros = 0;
              float pitch = 0;
              float roll = 0;

              if (!success) {
                  return;
              }

              // First, collect all data
              for (int i = 0; i < MAX_SAMPLES; i++) {
                    while (!myICM.dataReady()) {}
                    myICM.getAGMT();

                    Micros = micros();
                    pitch = atan2(myICM.accX(), myICM.accZ()) * 180 / M_PI;
                    roll  = atan2(myICM.accY(), myICM.accZ()) * 180 / M_PI;

                    time_buffer[i] = Micros;
                    roll_buffer[i] = roll;
                    pitch_buffer[i] = pitch;
          }

          // Then, send the collected data
          for (int x = 0; x < MAX_SAMPLES; x++) {
              tx_estring_value.clear();
              tx_estring_value.append(time_buffer[x]);
              tx_estring_value.append(":");
              tx_estring_value.append(pitch_buffer[x]);
              tx_estring_value.append(":");
              tx_estring_value.append(roll_buffer[x]);
              tx_characteristic_string.writeValue(tx_estring_value.c_str());
          }
          Serial.print("Done");
          break;
          }

Then I used a similar notification handler as in Lab 1 for reading the data.

def make_notification_handler(controller):
    def handler(sender: int, byte_array: bytearray):
        try:
            msg = controller.bytearray_to_string(byte_array)
            sep = msg.find(":")
            if sep != -1:
                times.append(msg[:sep])
                sep2 = msg.find(":", sep+1)
                pitches.append(msg[sep+1:sep2])
                rolls.append(msg[sep2+1:])
        except Exception:
            msg = bytes(byte_array).decode(errors="ignore")
        # Strip common C-string padding / line endings
        msg = msg.strip("\x00\r\n ")
    return handler

    handler = make_notification_handler(ble)
    ble.stop_notify(ble.uuid['RX_STRING'])
    ble.start_notify(ble.uuid['RX_STRING'], handler)
    print("Listening for notifications")

    ble.send_command(CMD.GET_ACC_READINGS, "")

Here is the example plotting code I used to generate the different graphs.

import pandas as pd
import matplotlib.pyplot as plt

times = [int(t) for t in times]
pitches = [float(p) for p in pitches]
rolls = [float(r) for r in rolls]

pitches = [p-2 for p in pitches]
rolls = [(0.9836066 * r - 0.4918033) for r in rolls]

t_s = (np.array(times) - times[0]) / 1000000.0  # ms -> s, relative to start

plt.figure(figsize=(10,5))
plt.plot(t_s, pitches, label='Pitch', linewidth=1, color='blue')
plt.xlabel('Time (s)')
plt.ylabel('Angle (degrees)')
plt.title('IMU: Pitch vs Time')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()

plt.figure(figsize=(10,5))
plt.plot(t_s, rolls,  label='Roll',  linewidth=1, color='red')
plt.xlabel('Time (s)')
plt.ylabel('Angle (degrees)')
plt.title('IMU: Roll vs Time')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()

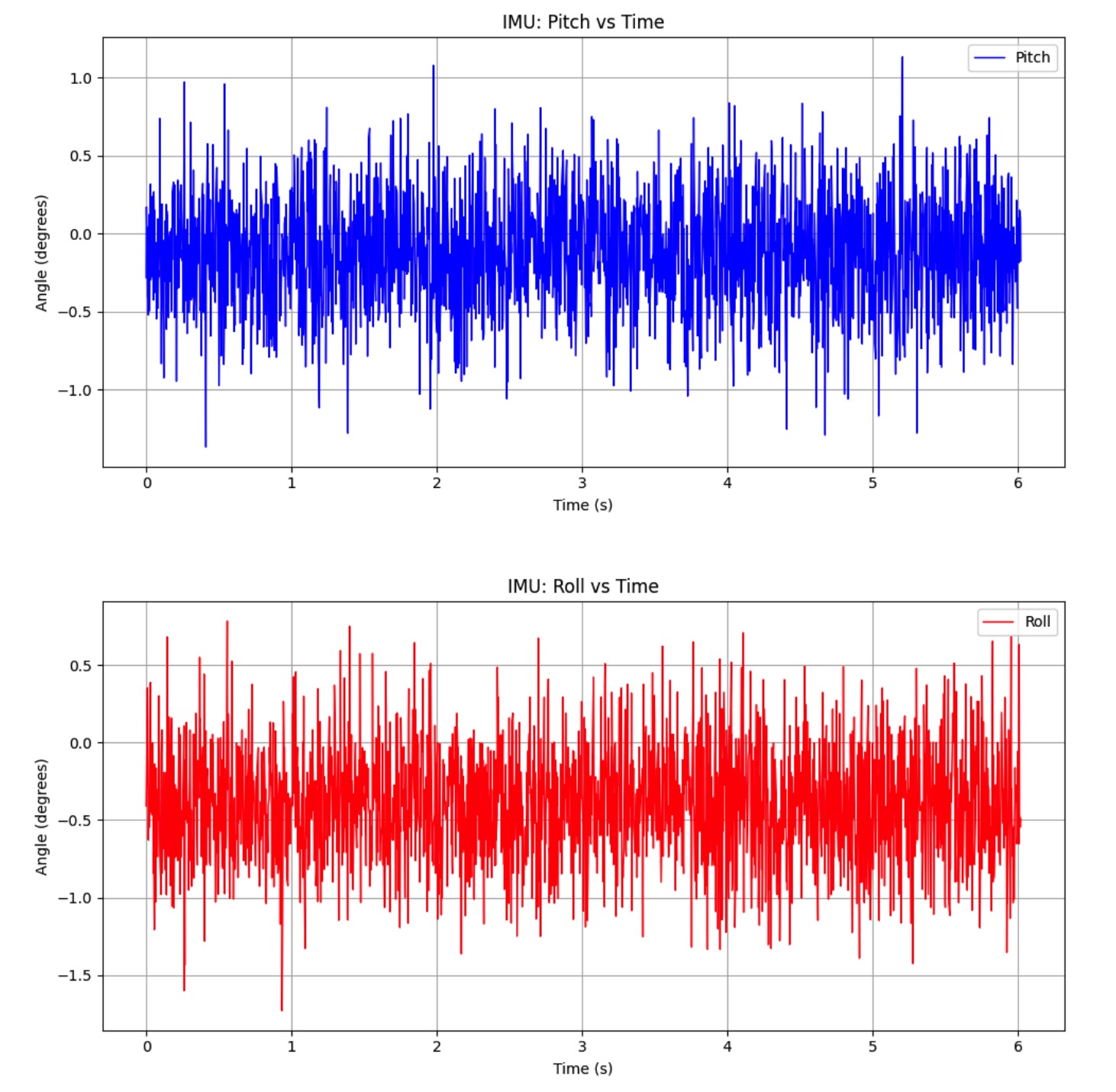

The plots above show raw accelerometer-derived pitch and roll over about 6 seconds. Both signals stay near 0° but exhibit high-frequency oscillations—roughly ±1° for both pitch and roll, indicating sensor noise and vibration from the proximity of the RC car. This raw data is what drives the use of a low-pass filter to reduce noise, which I will analyze in the next section.

FFT and Low-Pass Filter

I performed an FFT analysis to characterize accelerometer noise and chose a cutoff frequency for the low-pass filter.

Using the Frequency Spectrum to Choose a Cutoff Frequency

To determine an appropriate cutoff frequency for the low-pass filter, I analyzed the accelerometer-derived pitch and roll signals in the frequency domain using the Fast Fourier Transform (FFT). Before computing the FFT, I subtracted the mean of each signal to remove the dominant DC component caused by gravity, allowing the vibration and noise content to be more clearly observed.

The resulting frequency spectra show that the majority of the signal energy is concentrated at very low frequencies, corresponding to slow changes in orientation. Beyond this region, the spectrum becomes relatively flat and noisy, indicating high-frequency vibrations rather than meaningful motion. When the RC car was running nearby, noticeable energy appeared primarily below approximately 0 - 8 Hz, with no strong, structured peaks at higher frequencies.

Based on this observation, I decided to pick an end value where most of that noise lies, resulting in a cutoff frequency near 8 Hz for the low-pass filter. This cutoff preserves the low-frequency components associated with real robot motion while attenuating higher-frequency noise. Choosing a cutoff that is too low would over-smooth the signal and suppress legitimate motion (such as a quick tilt or turn), while choosing a cutoff that is too high would allow excessive vibration noise to remain in the signal.

Low-Pass Filter Design and Effect on the Data

To implement the low-pass filter, I used a 4th-order Butterworth filter, which provides a smooth passband and strong attenuation beyond the cutoff frequency. The filter was designed using the inferred sampling frequency of the IMU data and applied using a zero-phase filtfilt operation to avoid phase distortion.

In the time domain, the effect of the low-pass filter is clearly visible. The raw pitch and roll signals exhibit rapid, high-frequency oscillations on the order of ±1°, even when the sensor remains near a constant orientation. After filtering, these oscillations are significantly reduced, while the overall trend of the signal is preserved. This confirms that the removed components primarily correspond to noise rather than meaningful motion.

The FFT of the filtered signal further validates this choice: frequency components above the cutoff frequency are strongly attenuated, while low-frequency content remains largely unchanged. Together, the frequency-domain and time-domain results demonstrate that the selected cutoff frequency effectively balances noise reduction and signal fidelity.

Relation to Filter Parameters in Code

The cutoff frequency directly determines the filter coefficients used in the Butterworth design. As explained in lecture, the cutoff frequency $f_c$ is related to the time constant $RC$ by

$$f_c = \frac{1}{2\pi RC}$$

and the smoothing factor $\alpha$ is related to the sampling period $T$ by

$$\alpha = \frac{T}{T + RC}$$

To solve for this theoretical value, I used this code:

t_array = np.array(times) / 1e6
fs = 1 / np.mean(np.diff(t_array))
T = 1 / fs

fc = 5.0

RC = 1 / (2 * math.pi * fc)
alpha = T / (T + RC)

I got an alpha of 0.129 using the cutoff frequency of 8 Hz. In practice, rather than explicitly computing $\alpha$, I implemented the low-pass filter using a digital Butterworth filter, which internally accounts for the sampling frequency and cutoff frequency. This approach provides a more consistent frequency response and better attenuation characteristics than a simple first-order filter.

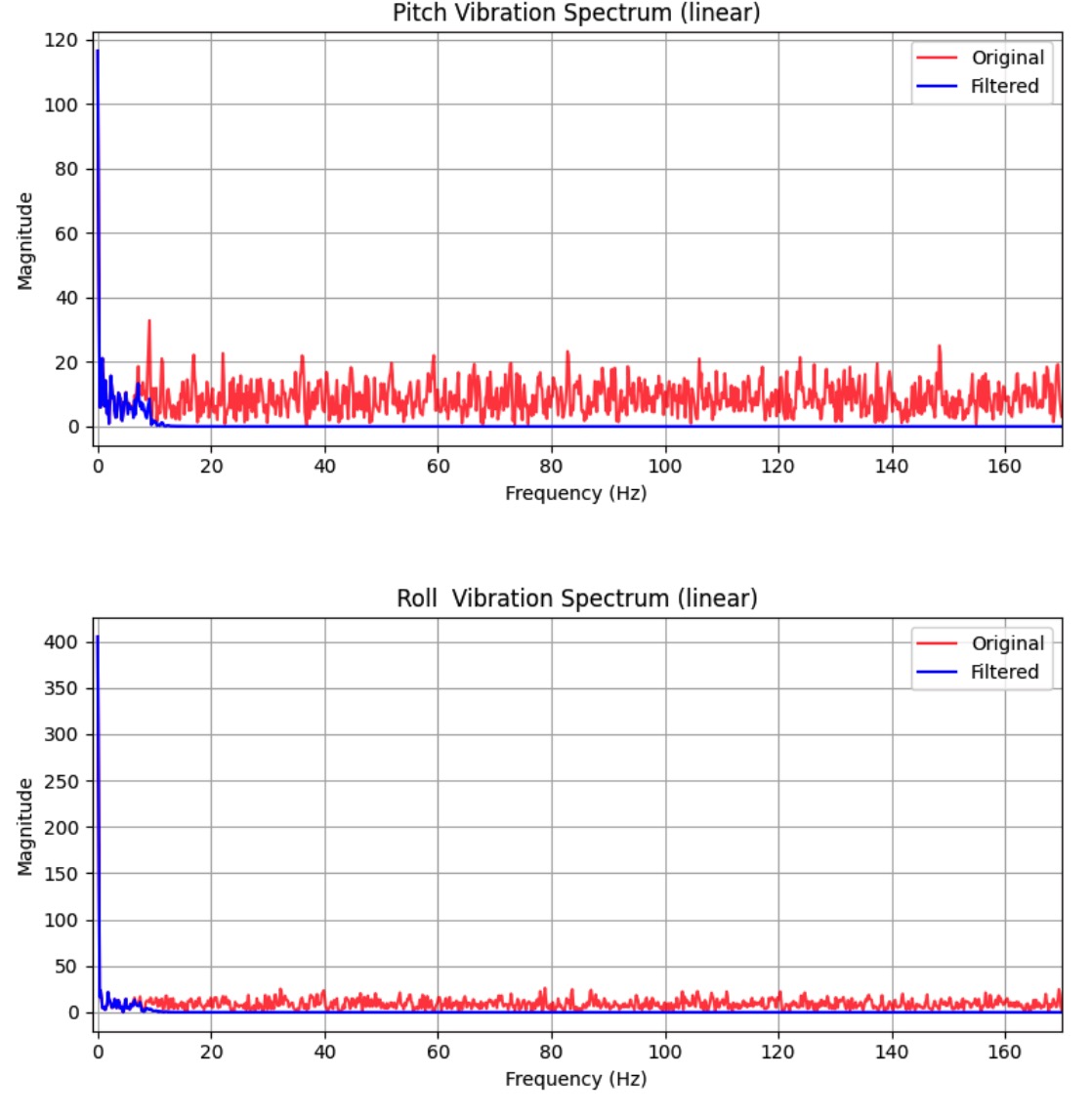

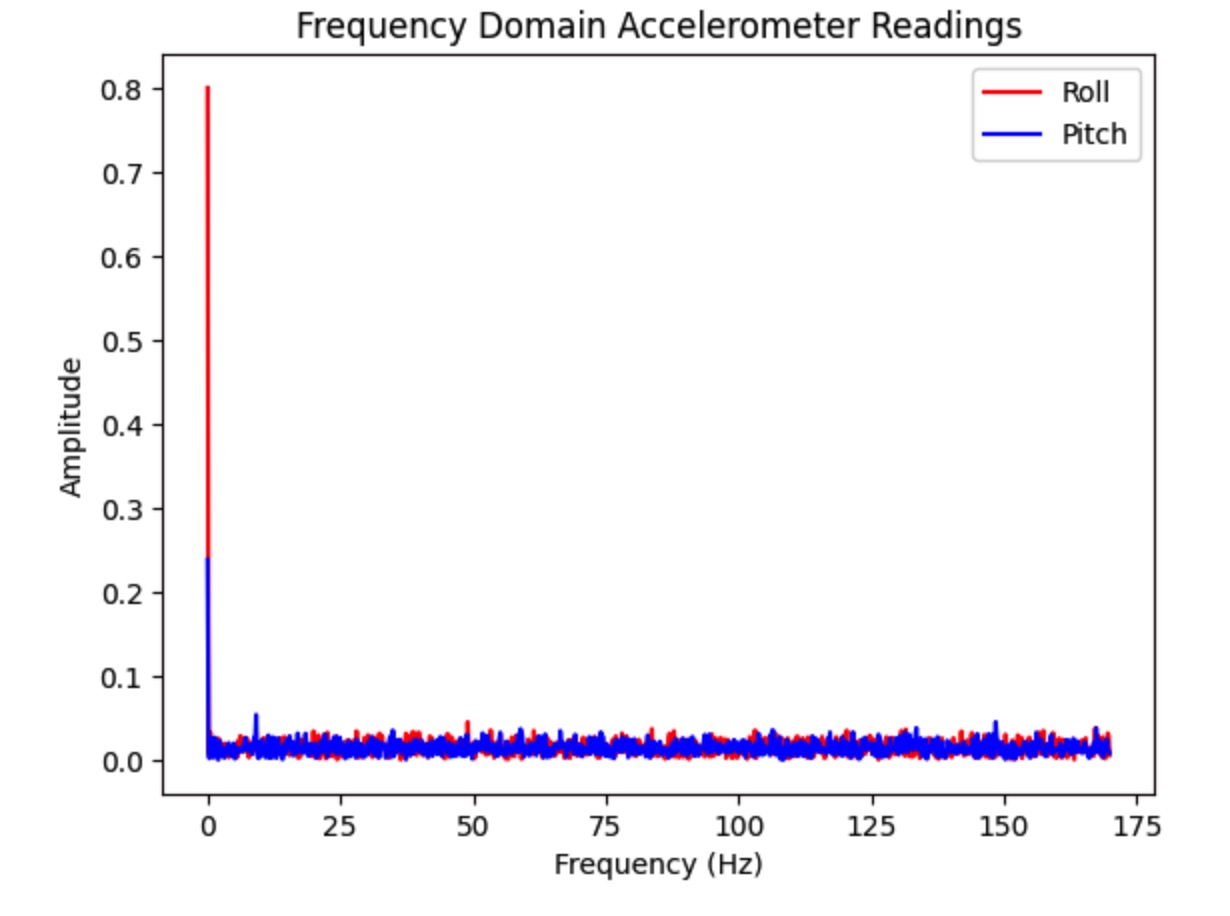

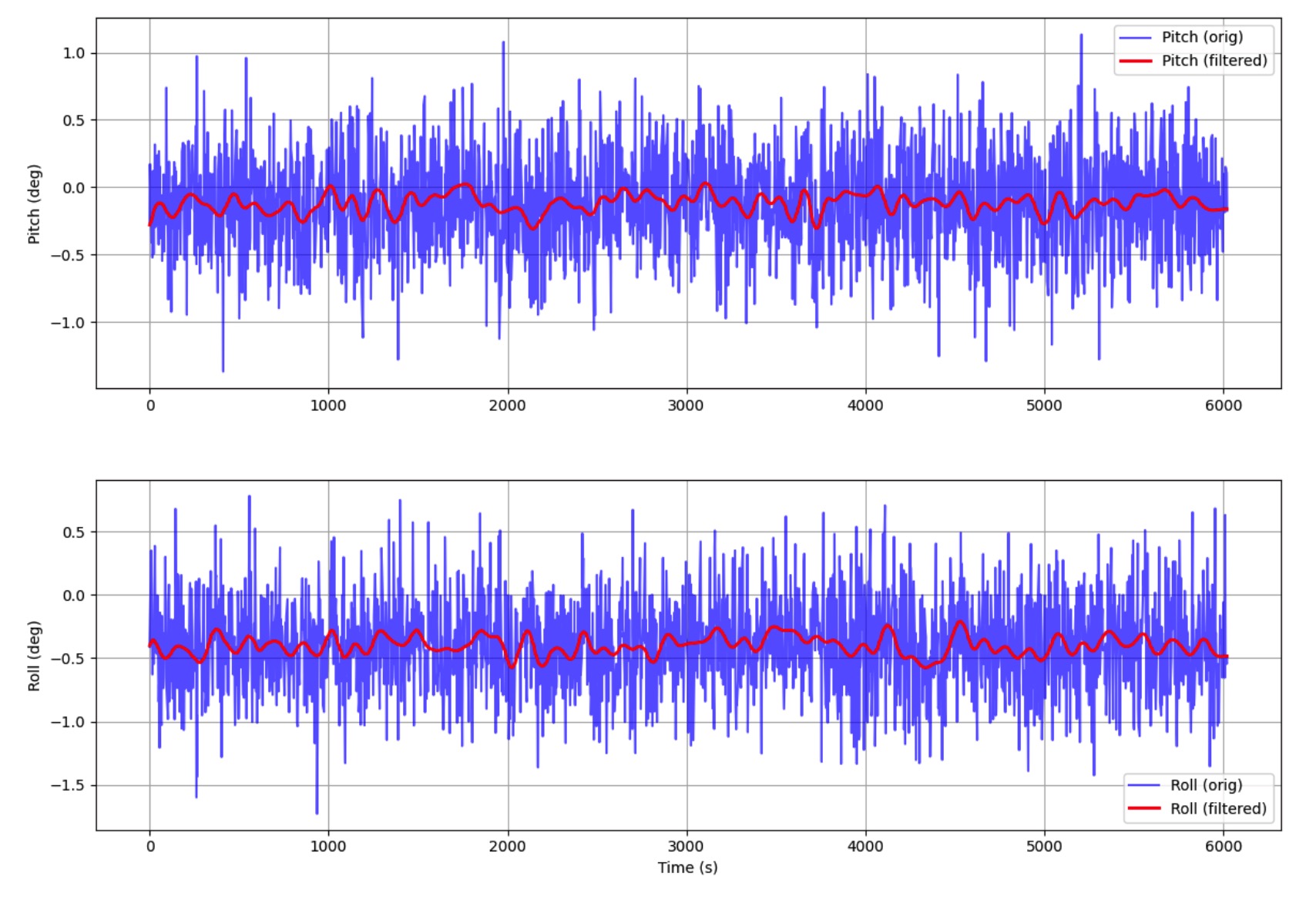

Below are the frequency-domain plots and raw vs. LPF comparisons.

Additional vibration and FFT analysis:

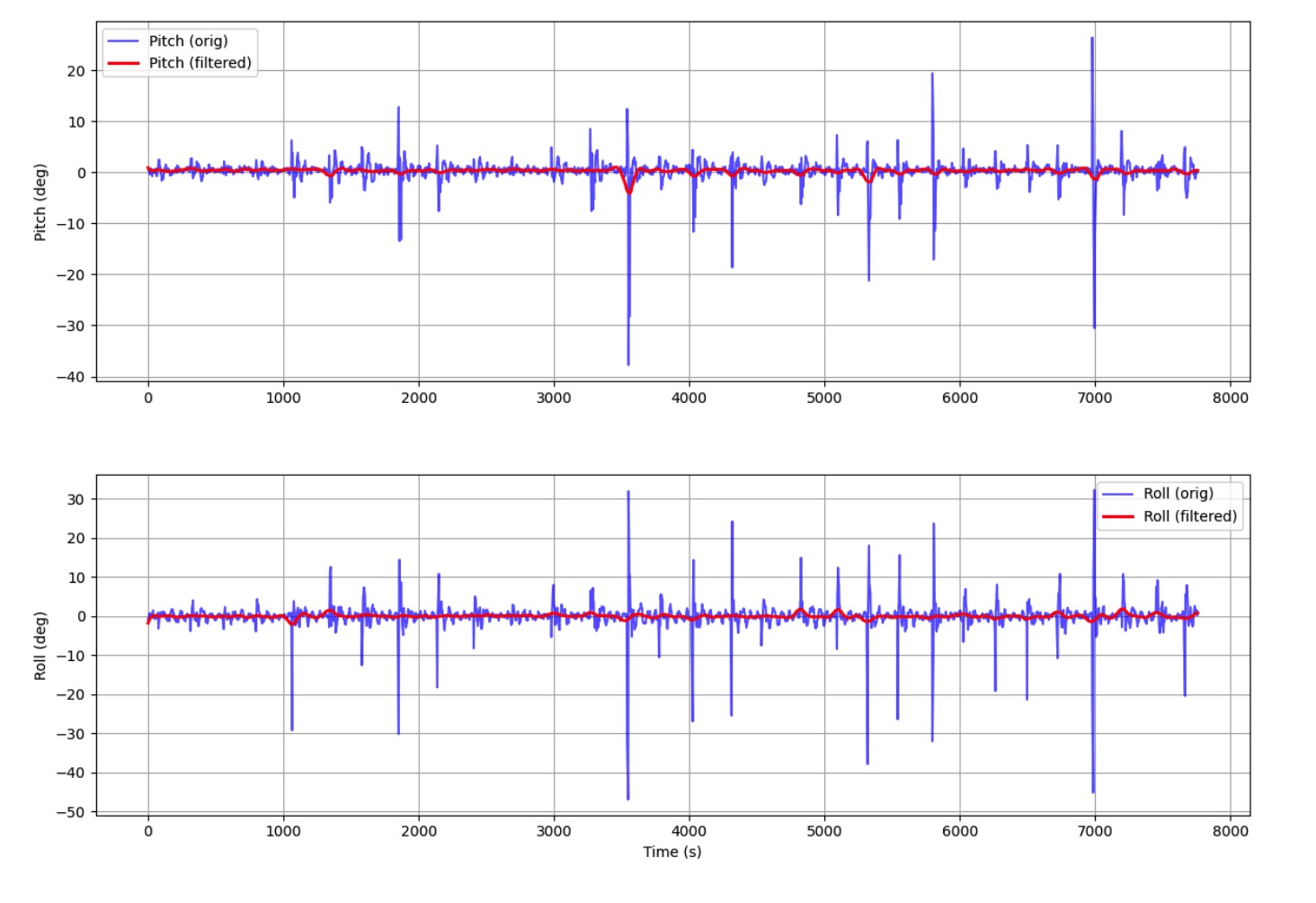

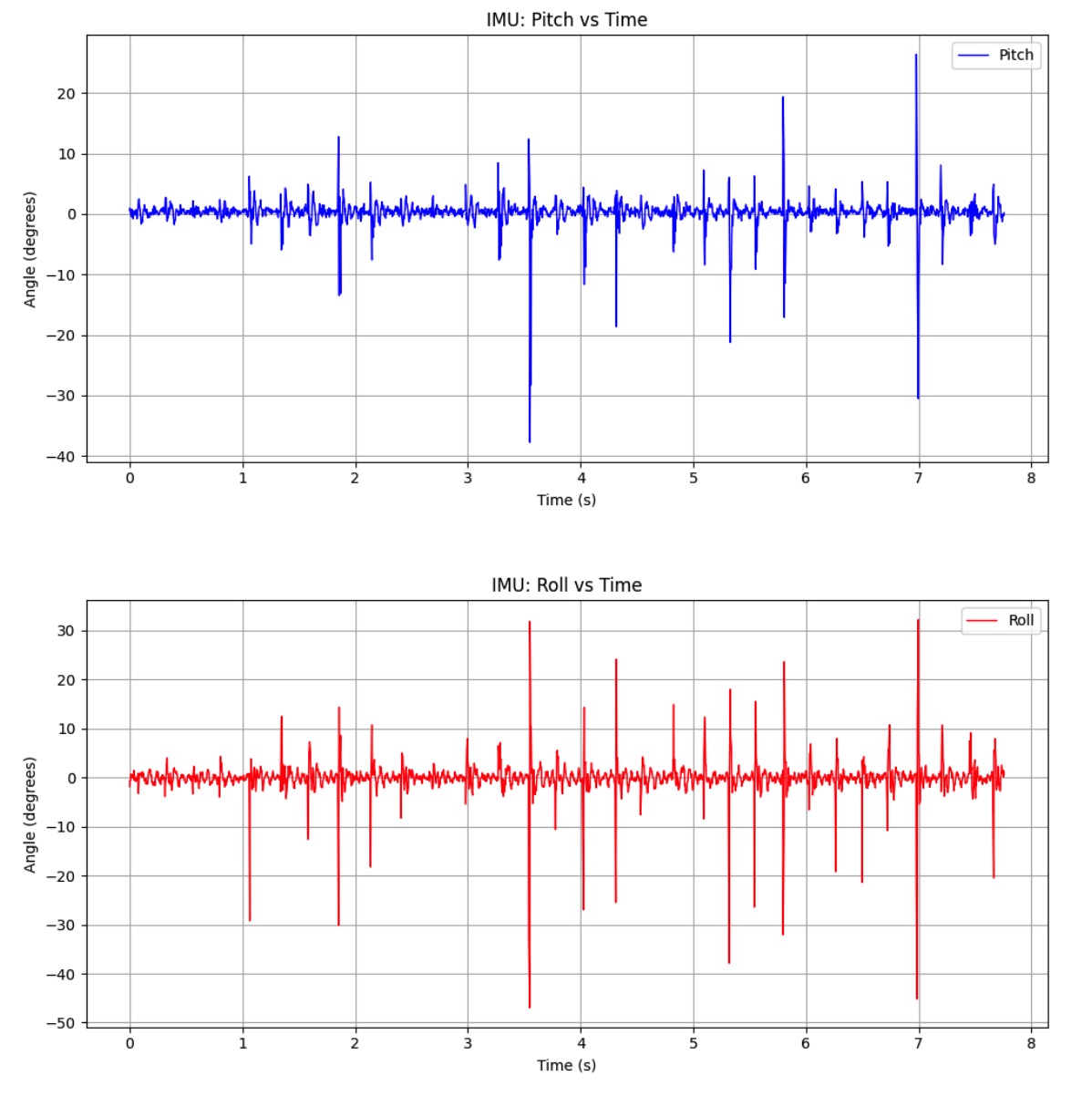

To deliberately induce vibrational noise, I placed the IMU on the lab table and gently tapped the table with my hand. As you might notice, the peaks in the following graphs are vibration noise from those impacts—the accelerometer picks up the mechanical shock as high-frequency spikes in pitch and roll. These spikes are generated just by my finger taps. This setup helps characterize how impulsive disturbances affect the raw signal and how well the low-pass filter attenuates them. You can see that the raw signal contains a lot of vibration noise, but the low-pass filter is able to smooth them out.

Gyroscope

Pitch, roll, and yaw from gyroscope

I integrated angular velocity (DPS) over time to obtain pitch, roll, and yaw angles from the gyroscope:

delta = (micros() - curr_time) / 1000000.0;
curr_time = micros();
pitch = pitch + myICM.gyrX() * delta;
roll = roll + myICM.gyrY() * delta;
yaw = yaw  + myICM.gyrZ() * delta;

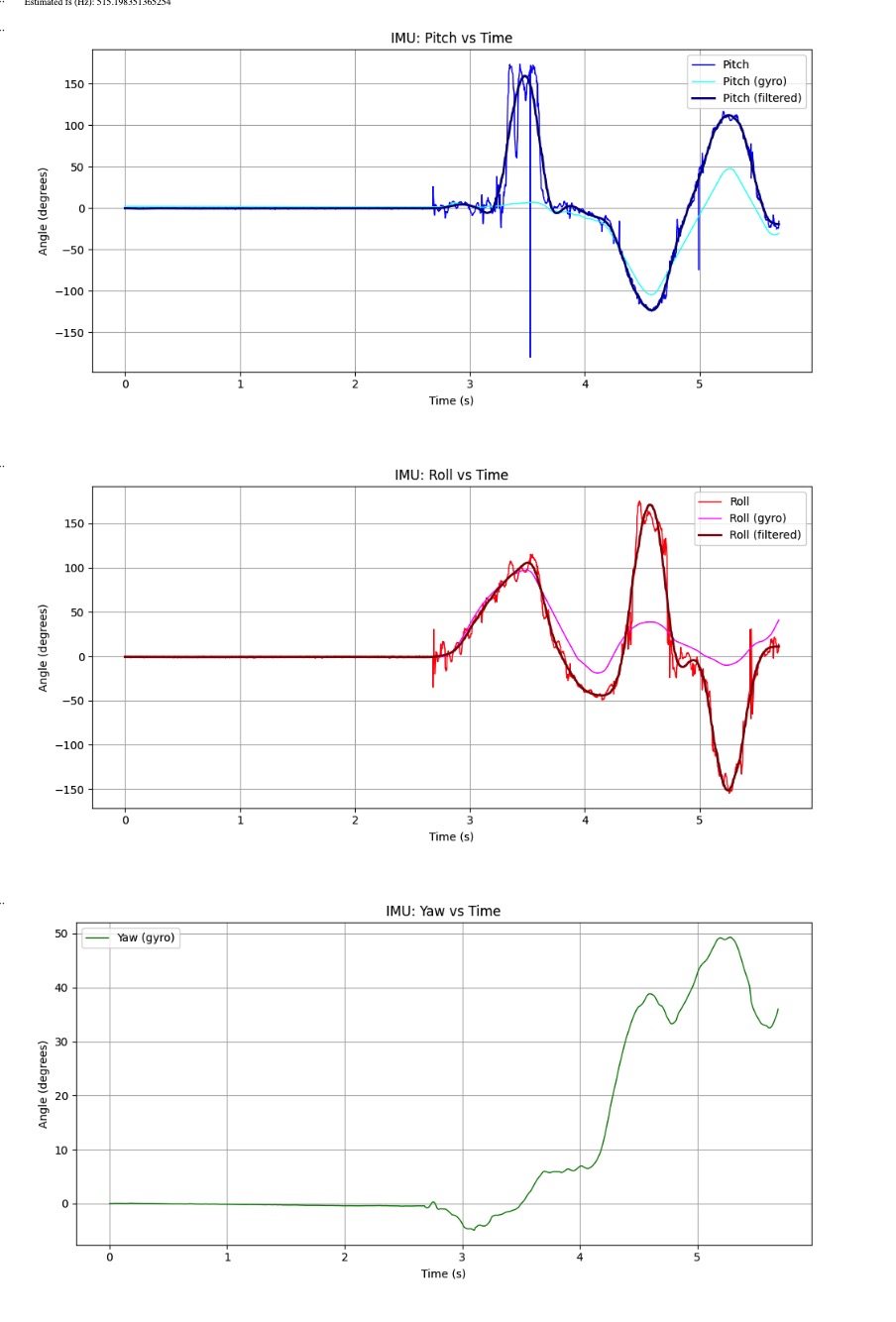

Gyroscope vs. accelerometer

The gyroscope and accelerometer use different axis conventions on the ICM-20948, as we learned in lecture. The gyro pitch/roll axes correspond to the accel roll/pitch axes (with a sign flip for pitch). So I had to correct this mapping in the code with the following edit:

float pitch_rate = -myICM.gyrY();
float roll_rate  =  myICM.gyrX();
float yaw_rate   =  myICM.gyrZ();

pitch_g += pitch_rate * dt;
roll_g  += roll_rate  * dt;
yaw_g   += yaw_rate   * dt;

For the most part, the gyroscope tracks quick rotations smoothly but drifts over time due to integration error. The accelerometer is more accurate at low frequencies but is noisy. A complementary filter combines both to get a stable and accurate orientation.

Currently, I am at the highest sampling frequency with no delay. I tried putting sleep in the sample data call, which would decrease the sampling frequency. In general, the estimated angles showed increased lag and reduced responsiveness to quick motions. This makes sense because at larger time steps, you miss rapid changes, causing high-frequency vibrations to appear as low-frequency drift.

Complementary Filter

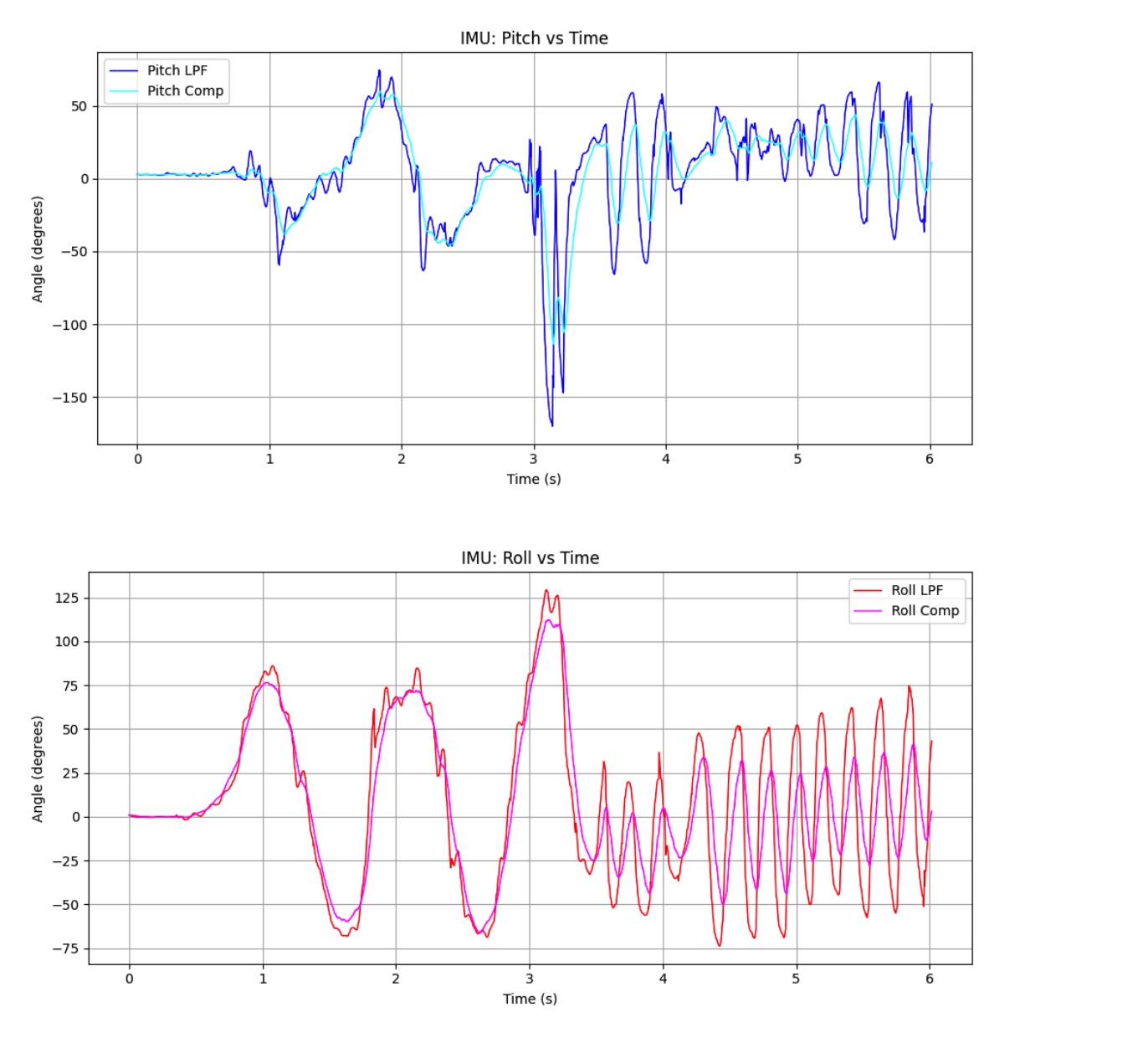

I fused the low-pass filtered accelerometer angles with the integrated gyroscope angles using a complementary filter:

roll_comp[i]  = (roll_comp[i-1]  + roll_G[i]  * dt) * (1 - alpha) + rollLPF[i]  * alpha;
pitch_comp[i] = (pitch_comp[i-1] + pitch_G[i] * dt) * (1 - alpha) + pitchLPF[i] * alpha;

Using an alpha of 0.05 for both the LPF and the complementary filter (which weights the gyroscope for short-term stability and the accelerometer for long-term accuracy), I got something like this:

const float alphaLPF  = 0.05f;
const float alphaComp = 0.05f;

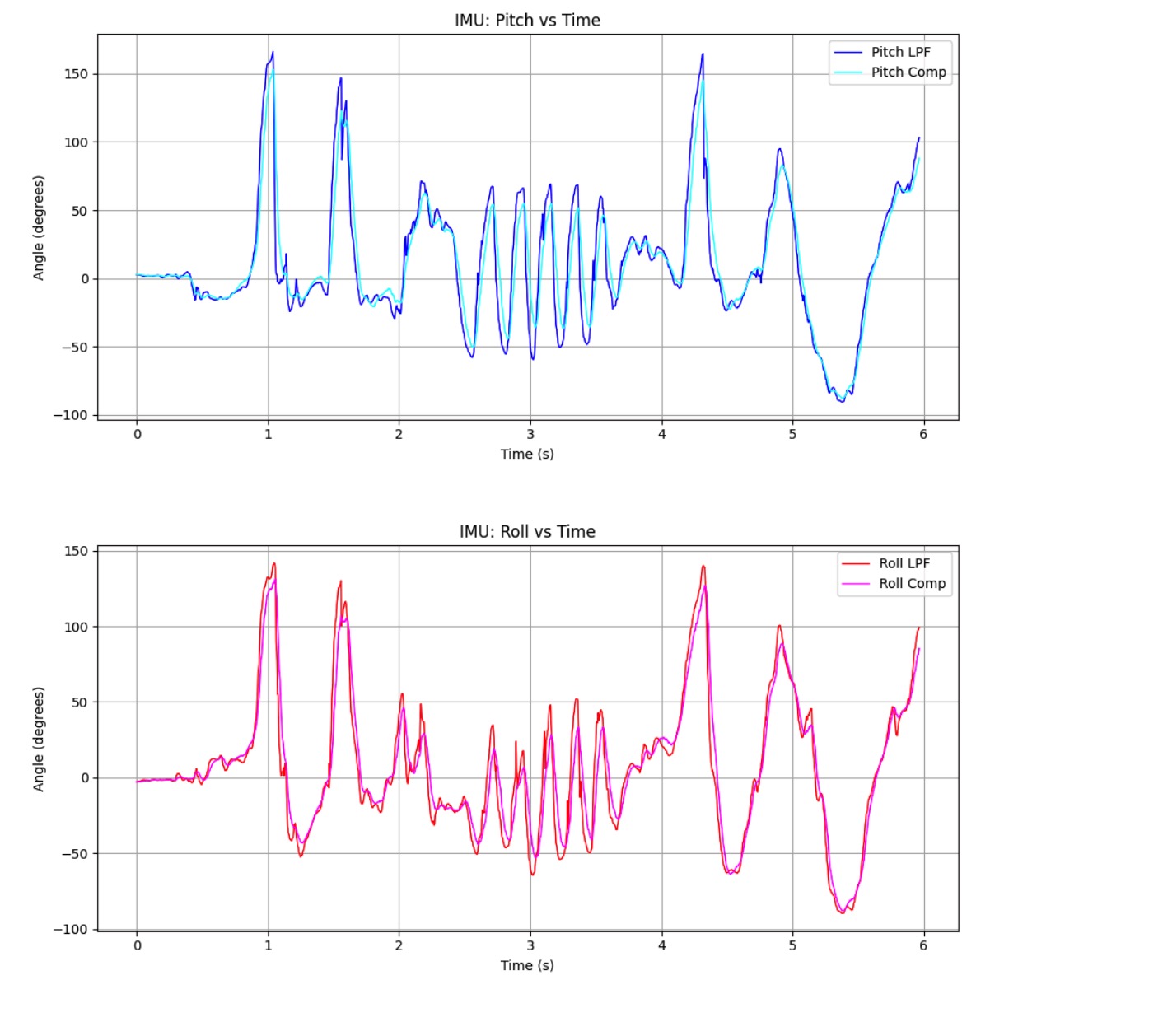

However, you might notice that the graph of the complementary filter is smooth but not very accurate, or it doesn't respond well to changes compared to the LPF's graph. This means I needed to increase the contribution of the accelerometer's LPF to get a smooth and drift-corrected roll and pitch.

const float alphaLPF  = 0.10f;
const float alphaComp = 0.05f;

Working range and accuracy

Working range: The complementary filter performs well across the typical operating range of pitch and roll—roughly ±90°. Beyond that, for these positions, the accelerometer-based angles become ill-defined (e.g., when the board is nearly vertical, the atan2 formulation approaches singularities), and the gyroscope integration accumulates more drift. This was knowledge from the microcontroller class.

Accuracy: With alphaComp = 0.05 and alphaLPF = 0.10, the fused output tracks the LPF accelerometer really well while staying smoother than the raw accel. The filter accuracy is ultimately limited by the accelerometer (calibration, noise) at low frequencies and by the gyroscope (bias, integration error) at high frequencies. Based on my graph, however, it seems to have very good accuracy.

Sampling Data

Speed up

I optimized the main loop to sample the IMU as fast as possible:

1. Non-blocking data collection: Instead of blocking on myICM.dataReady() inside the command handler, I check dataReady() in the main loop and call collectIMU() only when new data is available. Data is stored in arrays and sent over Bluetooth in a separate command.
2. Removed debug prints in the IMU read path to reduce overhead.
3. Start/stop flags so recording only runs when requested via Bluetooth commands.

The main loop runs much faster than the IMU produces data, so the IMU is the bottleneck. Comparing loop_count (main loop count) to imu_samples (samples collected) shows the loop cycles many times per IMU sample.

void
loop()
{
    // Listen for connections
    BLEDevice central = BLE.central();
    if (central) {
        // While central is connected
        while (central.connected()) {

          loop_count++;

            // Non-blocking IMU sampling
            if (recordIMU && sample_idx < MAX_SAMPLES) {
              if (myICM.dataReady()) {
                myICM.getAGMT();

                // Timing
                uint32_t now_us = micros();
                float dt = (now_us - t_last_us) / 1e6f;
                t_last_us = now_us;

                // Protect against weird dt (first sample / overflow / etc.)
                if (dt <= 0 || dt > 0.1f) dt = 0.0f;

                // Accel -> pitch/roll (deg)
                float pitch_a = atan2(myICM.accX(), myICM.accZ()) * 180.0f / M_PI;
                float roll_a  = atan2(myICM.accY(), myICM.accZ()) * 180.0f / M_PI;

                // Gyro rates (deg/s) with your axis mapping:
                float pitch_rate = -myICM.gyrY();
                float roll_rate  =  myICM.gyrX();
                float yaw_rate   =  myICM.gyrZ();

                // Initialize persistent states ONCE per recording
                if (!imu_state_initialized) {
                  pitch_g_state = pitch_a;
                  roll_g_state  = roll_a;
                  yaw_g_state   = 0.0f;

                  // pitch_lpf_state = pitch_a;
                  // roll_lpf_state  = roll_a;

                  // pitch_comp_state = pitch_a;
                  // roll_comp_state  = roll_a;

                  imu_state_initialized = true;
                }

                // Integrate gyro angles
                pitch_g_state += pitch_rate * dt;
                roll_g_state  += roll_rate  * dt;
                yaw_g_state   += yaw_rate   * dt;

                // // Low-pass accel angles
                // pitch_lpf_state = alphaLPF * pitch_a + (1.0f - alphaLPF) * pitch_lpf_state;
                // roll_lpf_state  = alphaLPF * roll_a  + (1.0f - alphaLPF) * roll_lpf_state;

                // // Complementary filter (gyro prediction + accel correction)
                // pitch_comp_state = (1.0f - alphaComp) * (pitch_comp_state + pitch_rate * dt) + alphaComp * pitch_lpf_state;
                // roll_comp_state  = (1.0f - alphaComp) * (roll_comp_state  + roll_rate  * dt) + alphaComp * roll_lpf_state;

                // Store into arrays
                int i = sample_idx;
                time_buffer[i]      = now_us;

                pitch_buffer[i]     = pitch_a;          // raw accel angle
                roll_buffer[i]      = roll_a;

                pitchg_buffer[i]    = pitch_g_state;    // integrated gyro angle
                rollg_buffer[i]     = roll_g_state;
                yawg_buffer[i]      = yaw_g_state;

                // pitchLPF_buffer[i]  = pitch_lpf_state;  // filtered accel
                // rollLPF_buffer[i]   = roll_lpf_state;

                // pitchcomp_buffer[i] = pitch_comp_state; // fused
                // rollcomp_buffer[i]  = roll_comp_state;

                sample_idx++;
                imu_samples++;

                // Stats
                dt_last = dt;
                dt_avg = dt_avg + (dt - dt_avg) / imu_samples;
              }
            }
            // Send data
            write_data();

            // Read data
            read_data();
        }
    }
}

Notice I decided to only send time, raw pitch and roll from the accelerometer, and pitch, roll, and yaw from the gyroscope. This is because I could compute the low-pass filtered values and complementary values on the Python server. This design choice was made to allow me to push through more data as quickly as possible.

Data storage

I used separate float arrays for time (which is an int), raw accel roll/pitch, and gyro roll/pitch/yaw. With 4 bytes per float (6 values) + delimiting characters (5), that is 44 bytes per sample. In particular, compared to alternative options, representing a float or int as a string takes up more space if the number is more than 4 digits. This is true for all of our data; therefore, I believe I am using the most efficient way to store these values.

Lab 2 global variables use 131,832 bytes. The Artemis has 384 kB RAM, leaving roughly 252 kB for dynamic allocation. At 44 bytes per sample, this allows storing about 5700 samples. At a ~330 Hz (see below for the calculation) sample rate, that corresponds to roughly 17 seconds of continuous IMU data.

5 seconds of IMU data

I collected at least 5 seconds of IMU data and sent it over Bluetooth to verify the pipeline. This section demonstrates that I can send 5 seconds of IMU data, showing the stored IMU data array with timestamps and start/end flags.

ble.send_command(CMD.START_IMU, "") # start flag
time.sleep(5)
ble.send_command(CMD.STOP_IMU, "") # end flag
time.sleep(0.2)
ble.send_command(CMD.SEND_IMU, "") # actual method for sending data over BLE

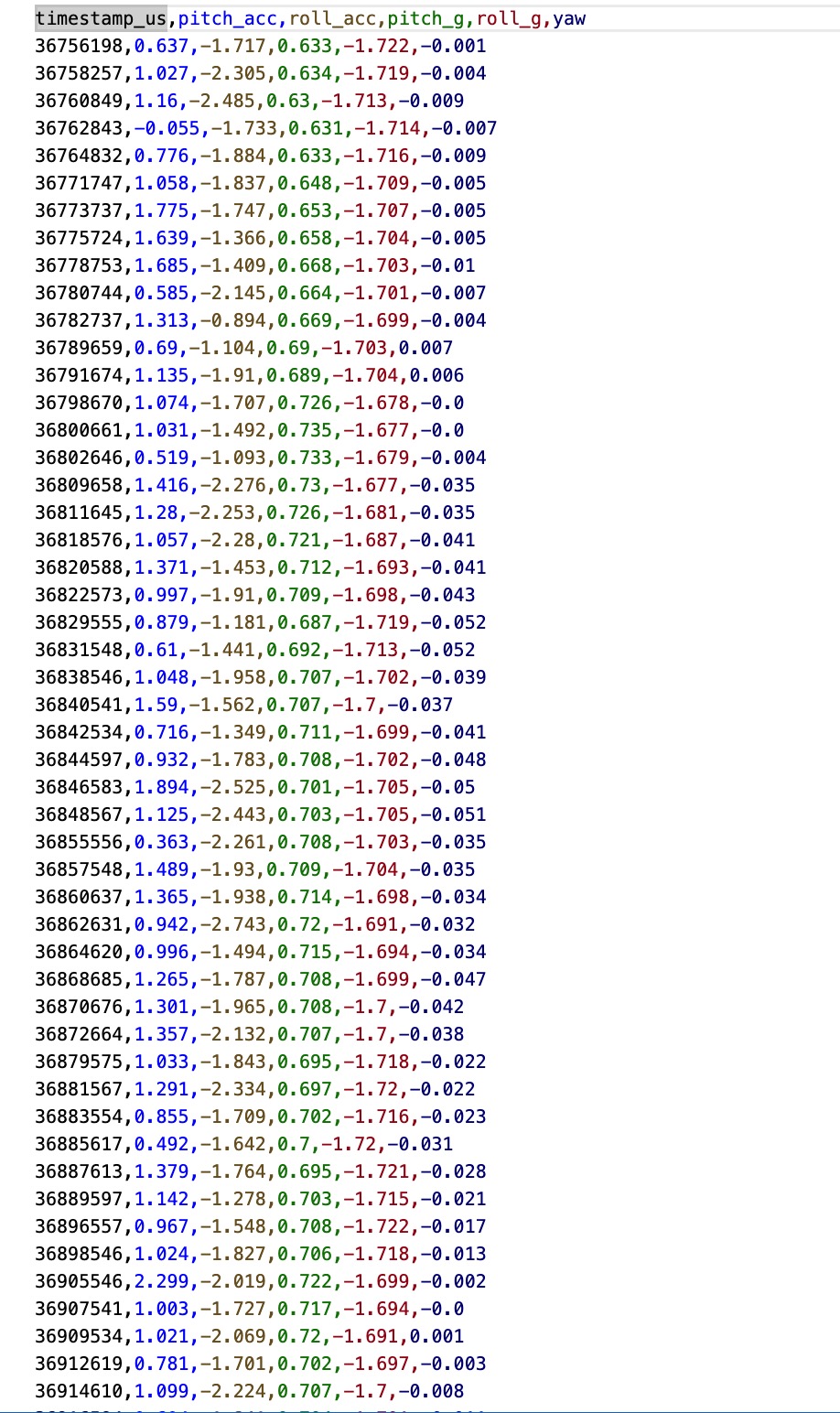

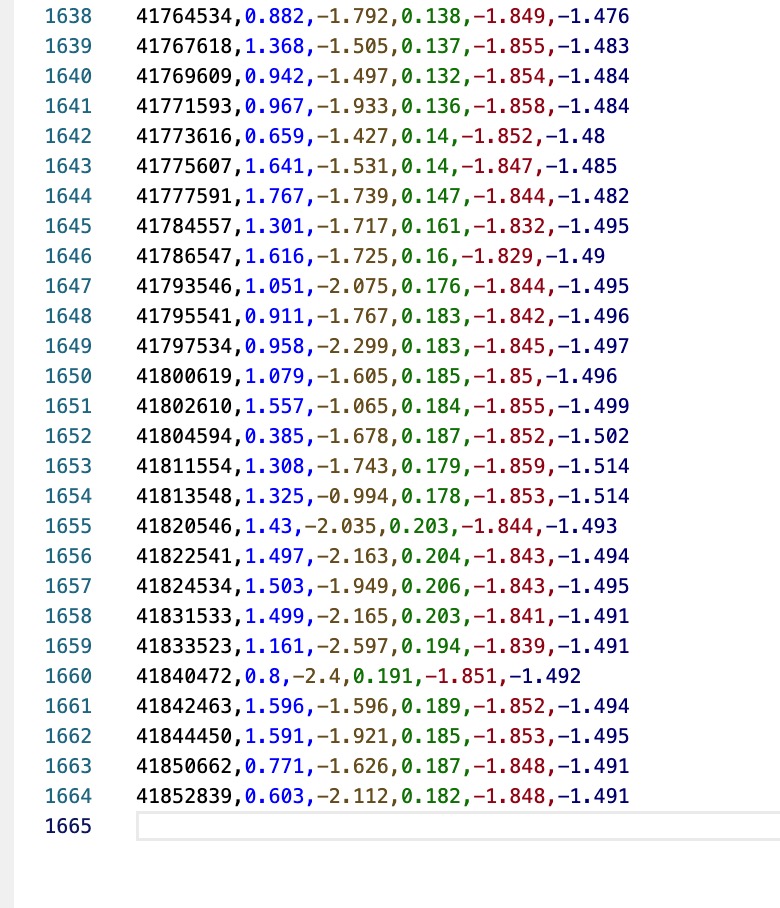

Here is the beginning and end of the csv for the data I collected for about 5.1 seconds.

There is a total of 1663 samples collected in 5 seconds, which gives about 1663 / 5 = 332.6 Hz for data transfer.

RC Stunts

Below are videos of the RC car stunts powered by battery.

From playing with the car, I noticed that the RC car is quick at reacting to any signal sent from the controller. I observed the car's turning, driving straight, and drifting. It has a great self-turning mechanism if you hold down the turning trigger. I also noticed that it seems to maintain a constant speed while turning, and how easily it can be flipped over.

Bonus: I was able to get the RC car on its side and drive it with only 2 wheels on the ground. Not really useful, but I thought it was interesting.

Collaboration

I collaborated with: Ananya Jajodia.

I referenced: Lucca Correia's site for FFT debugging and Sampling data section.

ChatGPT was used for: code debugging + plot generation + website formatting.
